[Revised] Settings Up STM32CubeIDE for Bare Metal Programming

In this guide, the installation of the IDE is presented.

In this guide, we shall cover the following:

• Installing the IDE
• Constructing the correct project tree

Note: This guide for STM32F411. However, the method will apply to most of STM32 families.

1. Installing the IDE:

Head to main STM32CubeIDE website from here.

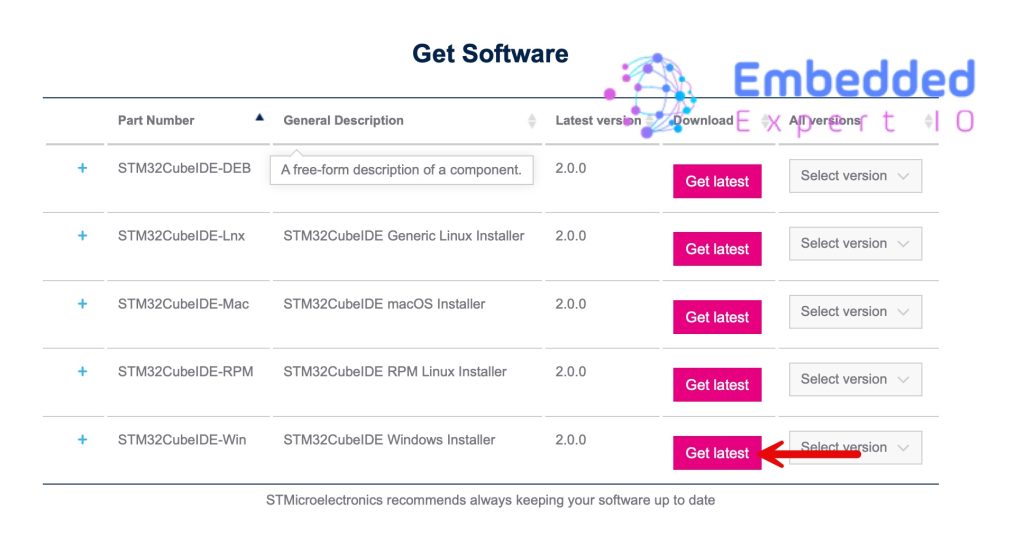

Select latest version for your OS. This guide shall use windows version.

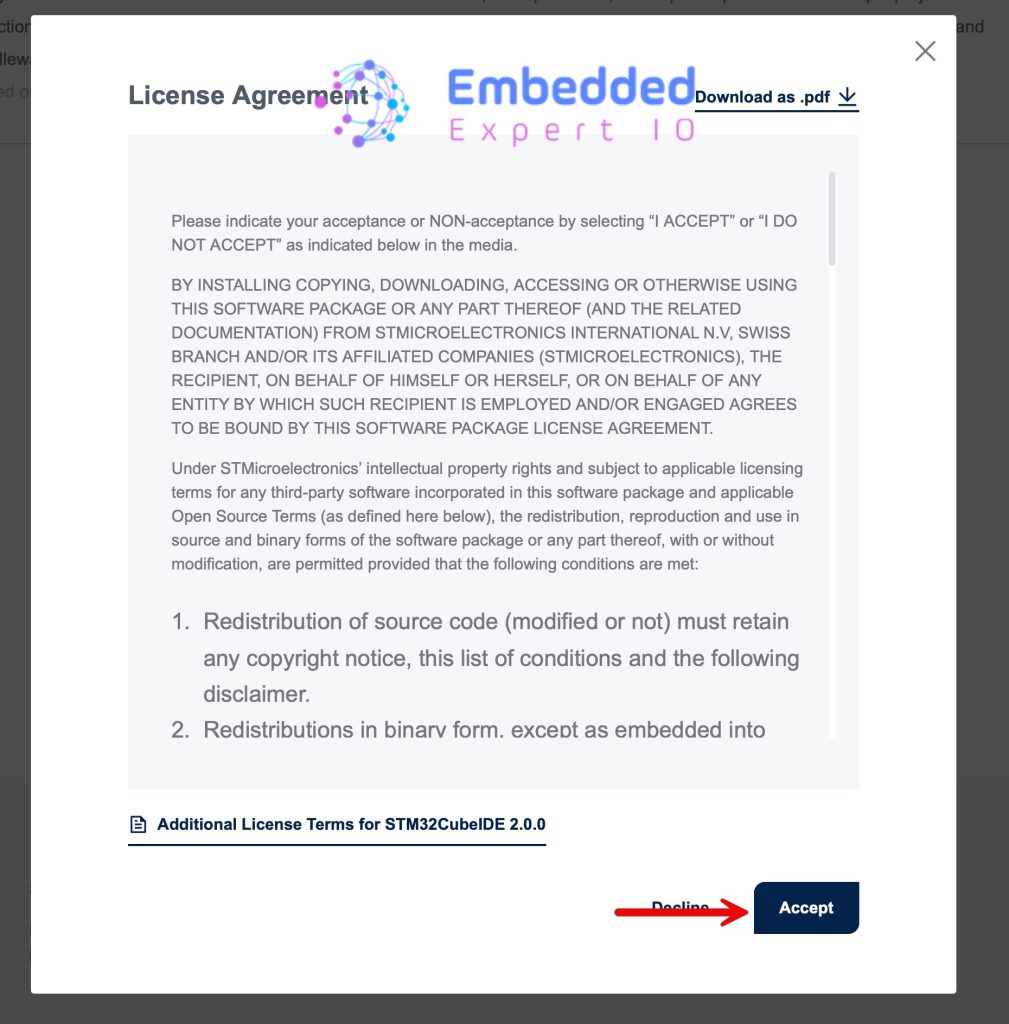

Agree to terms:

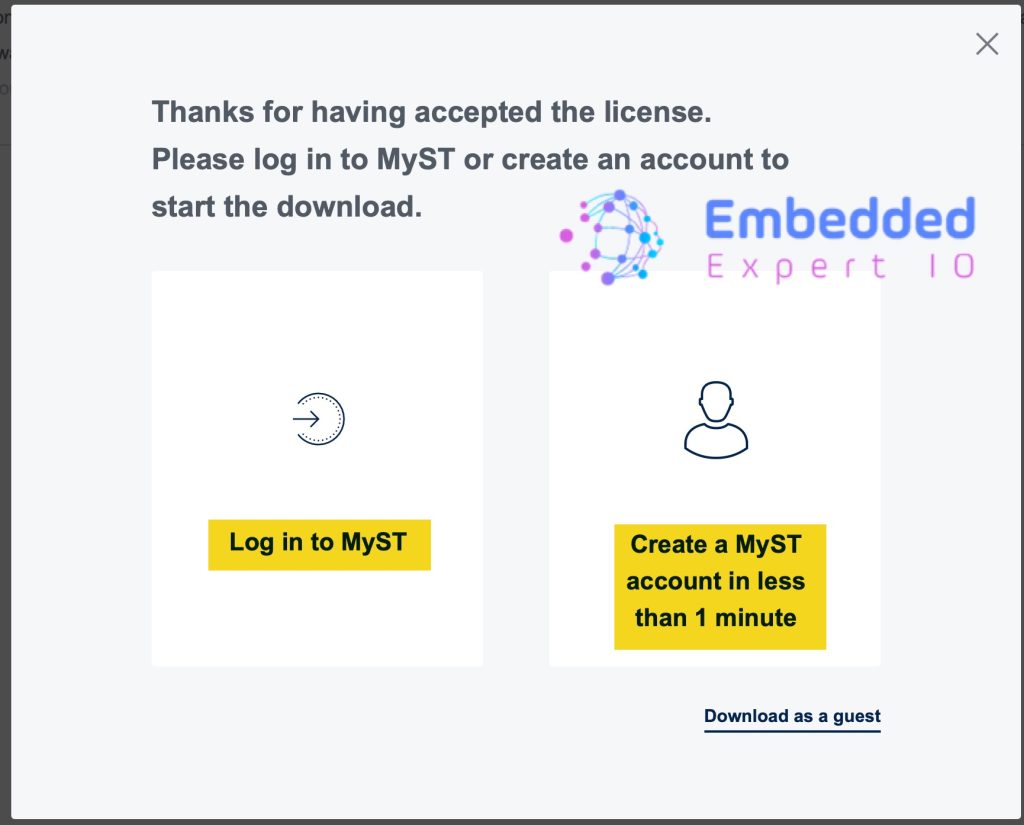

Next, either log in or create a new account:

Once that done, download will start automatically.

Follow this video to setup STM32CubeIDE:

2. Construct the right project tree:

For constructing the right project tree, the header files can be downloaded from STM32CubeF4 from main website from here.

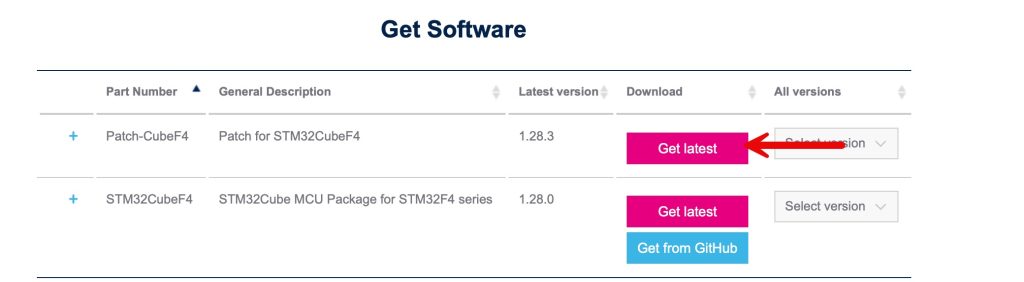

Download the latest version as follows:

Agree to terms:

Next, either log in or create a new account:

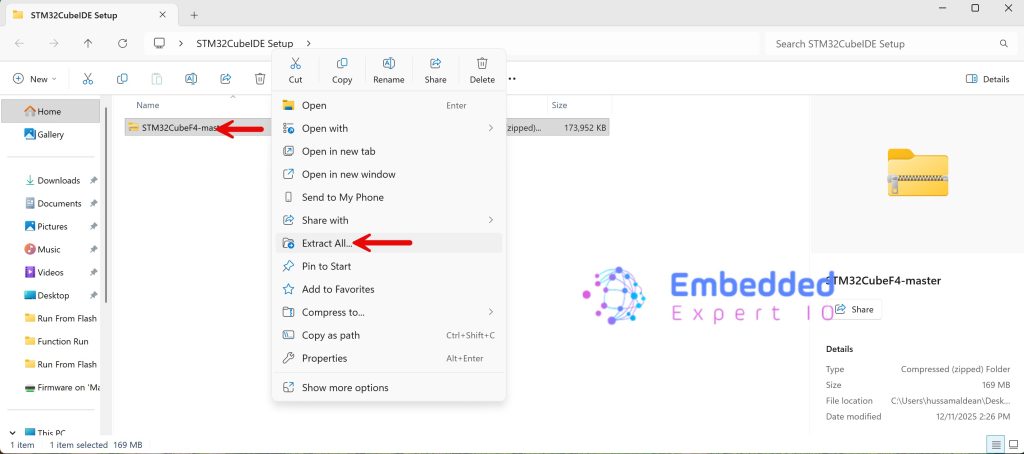

After downloading the firmware, extract it as following:

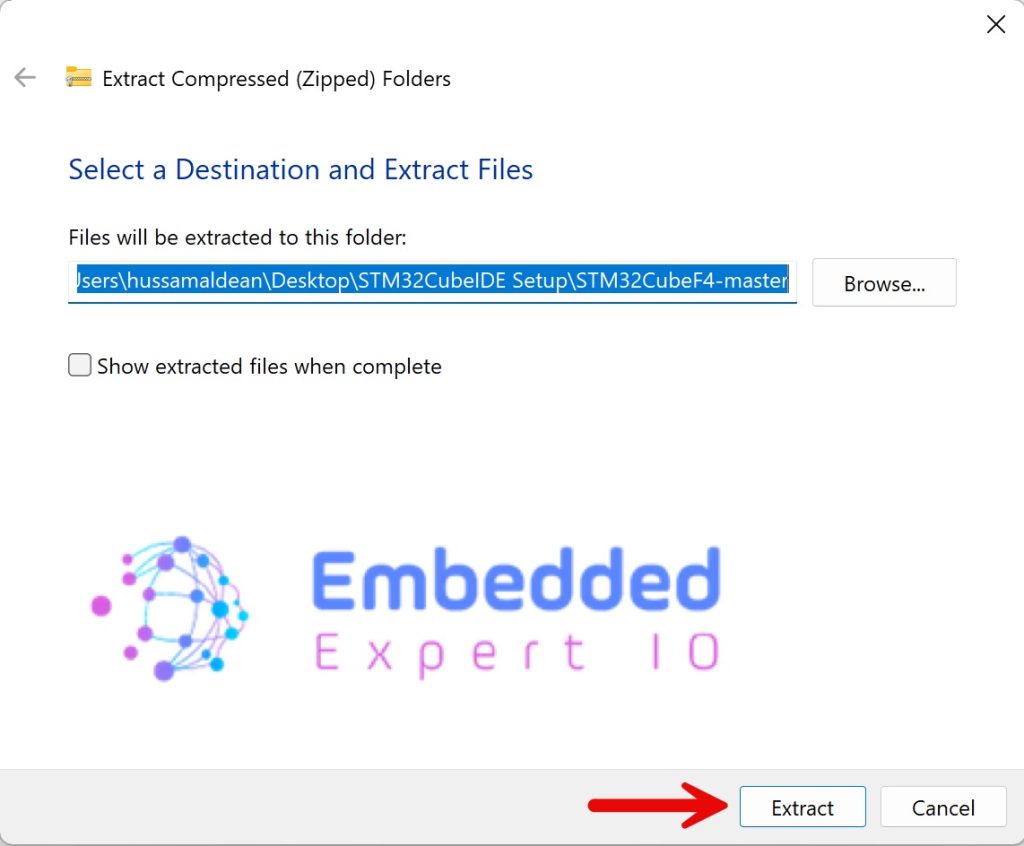

After clicking on extract here, this will pop-up:

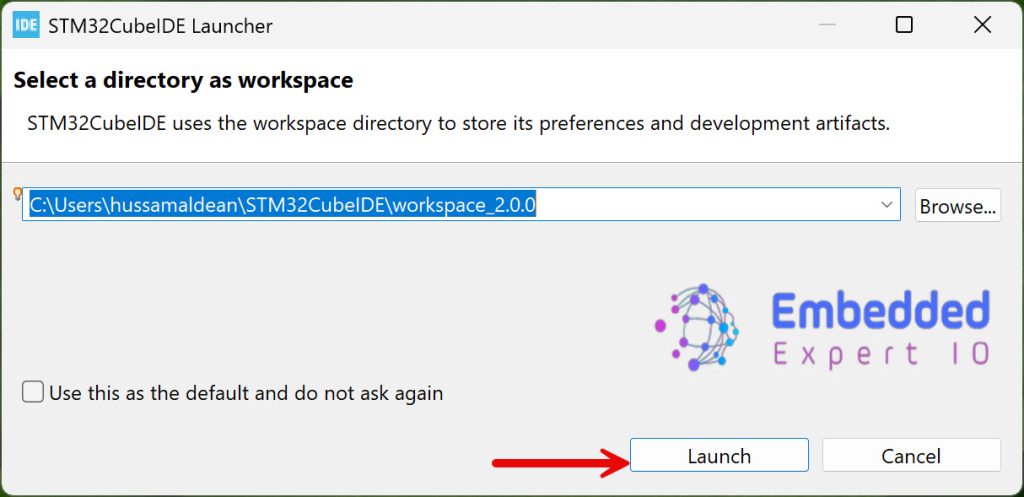

After extraction, open STM32CubeIDE and select your work space:

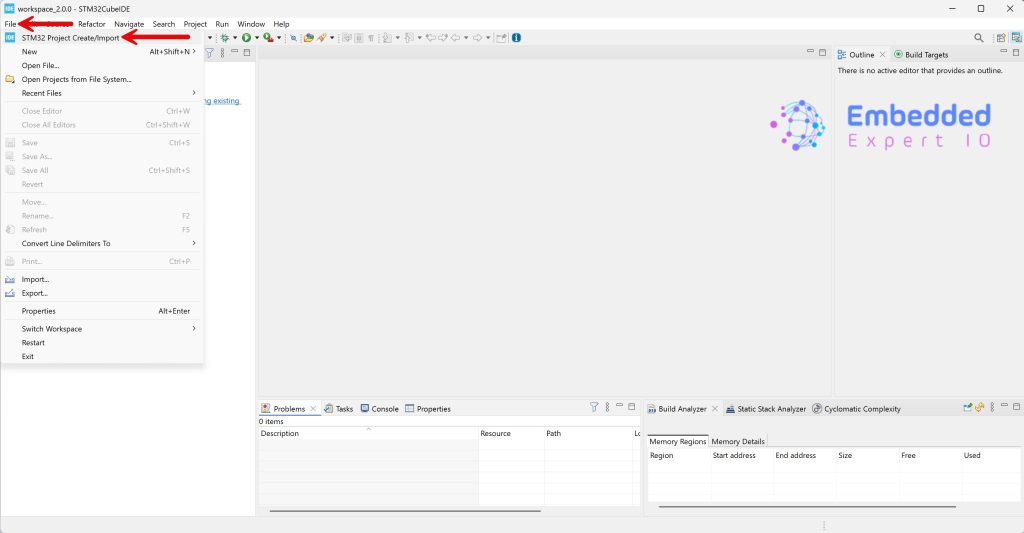

Next, create New Project by clicking on File then STM32Project Create/Import as follows:

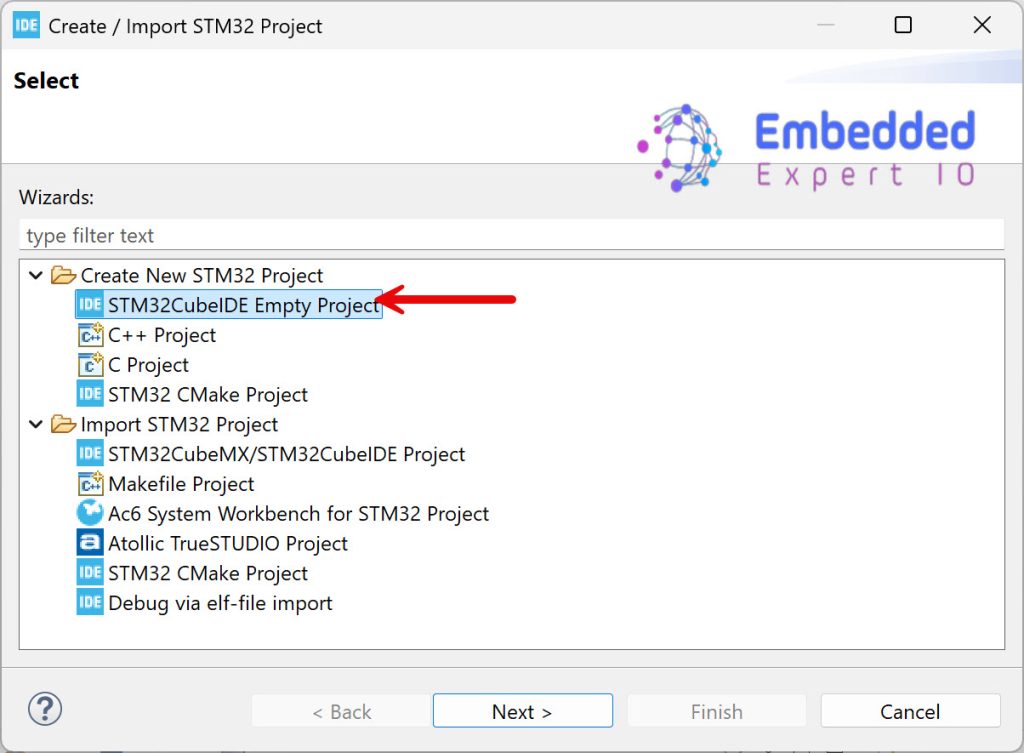

Select STM32CubeIDE Empty Project:

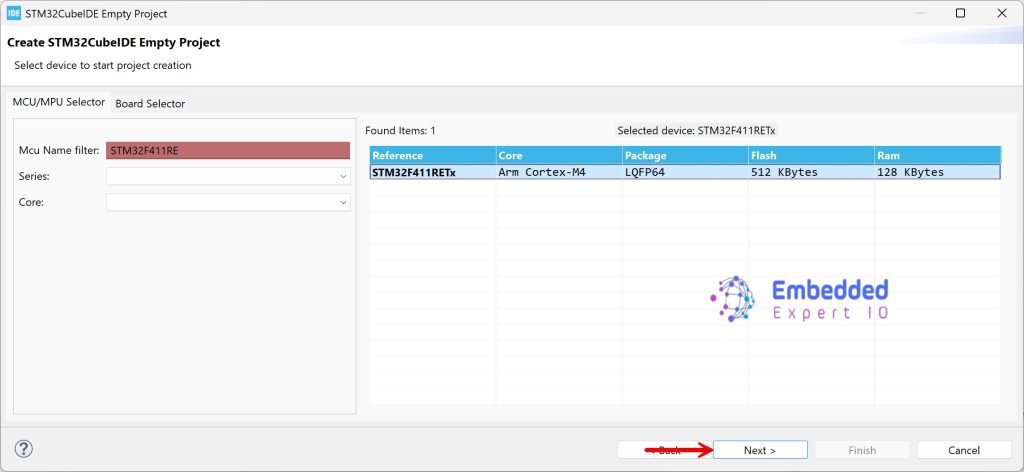

Select your STM32 chip (STM32F411RE in this case) and click on next:

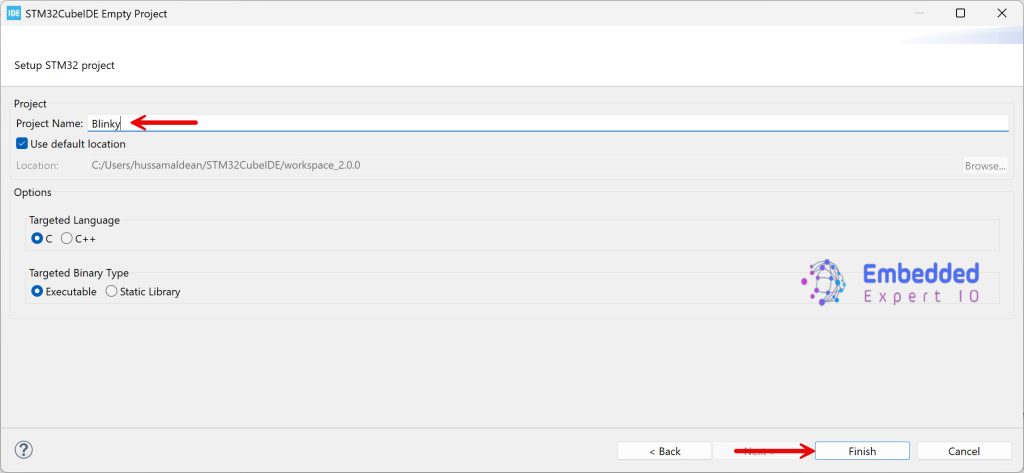

Give the project a name and click on finish:

Then, the project shall be generated.

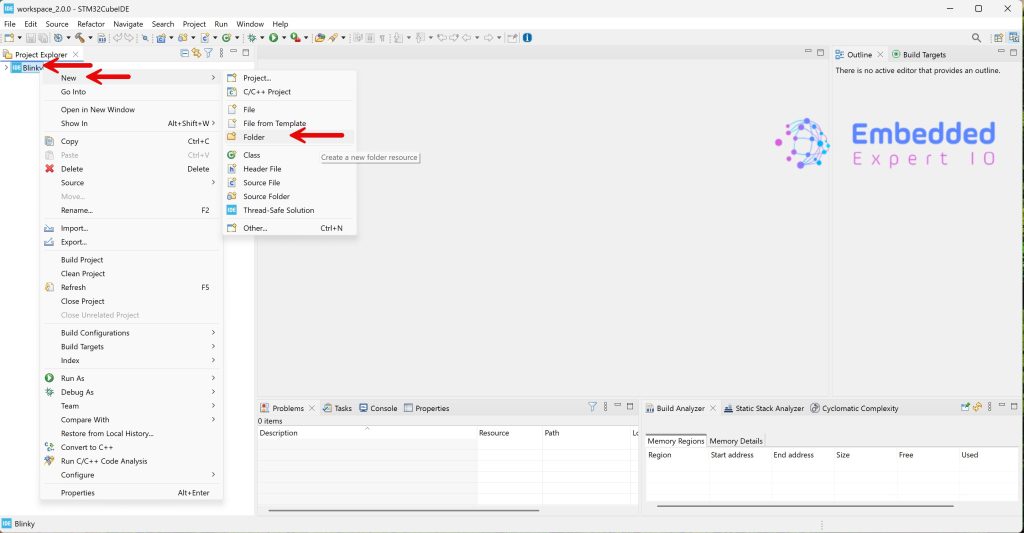

From the project explorer, right click on the project name, select new and select folder:

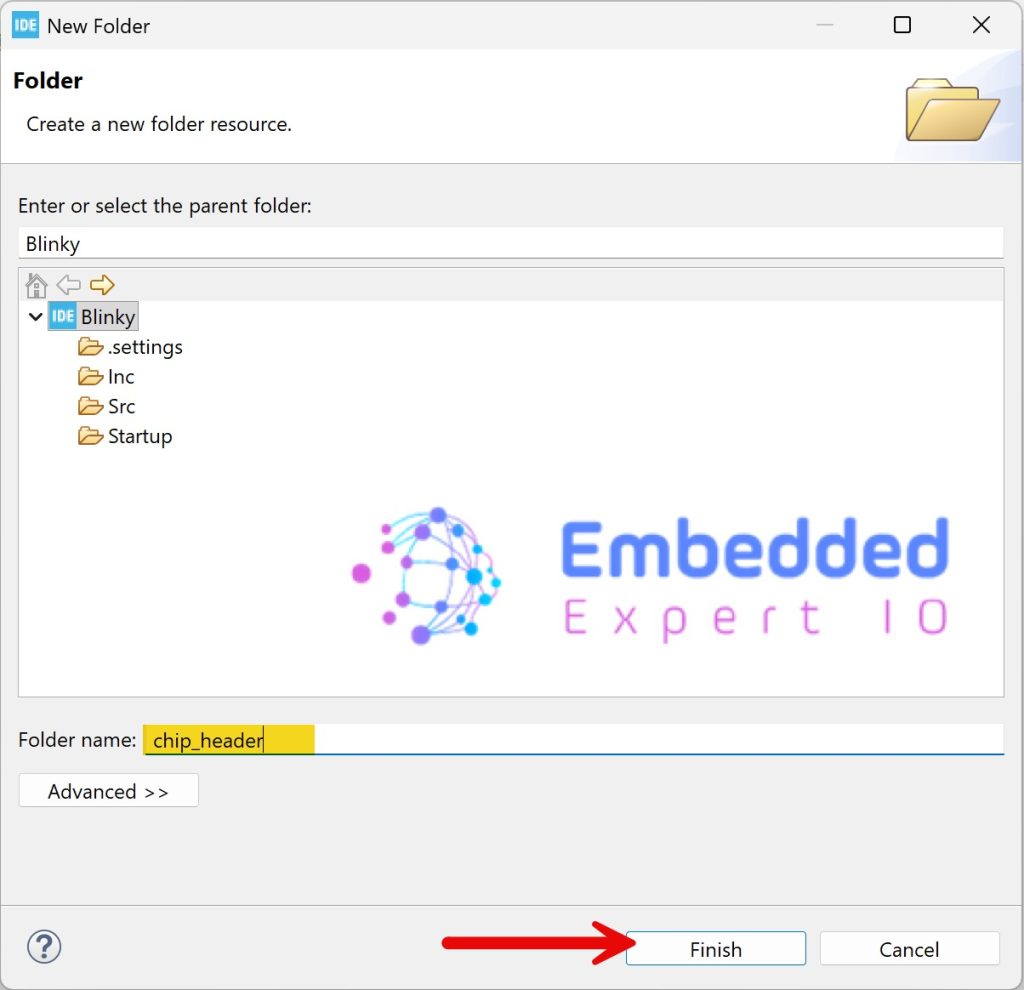

Name the folder as chip_header and click on finish:

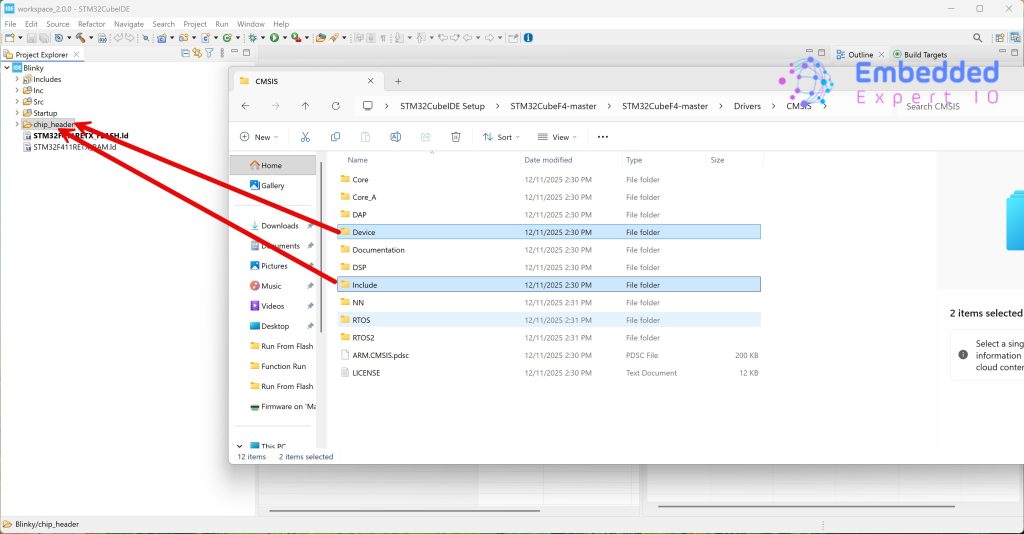

Now, within the firmware folder, go to Drivers/CMSIS and simply drag and drop Device and Include folders to chip_header folder:

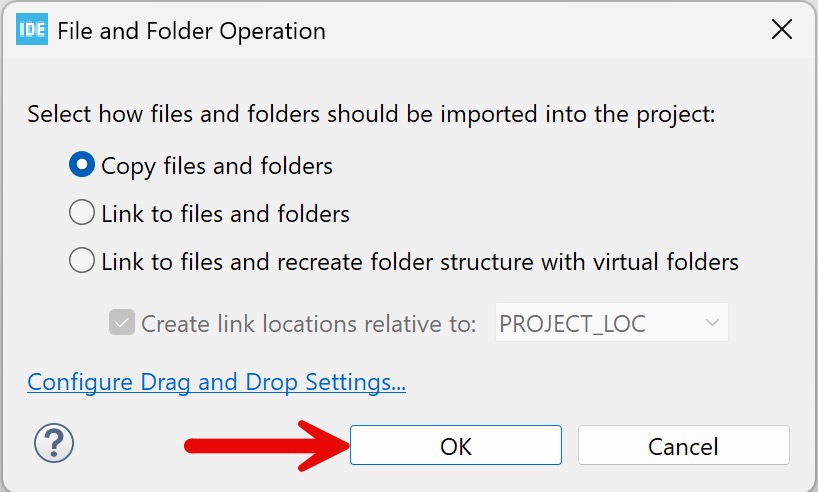

This window will pop-up:

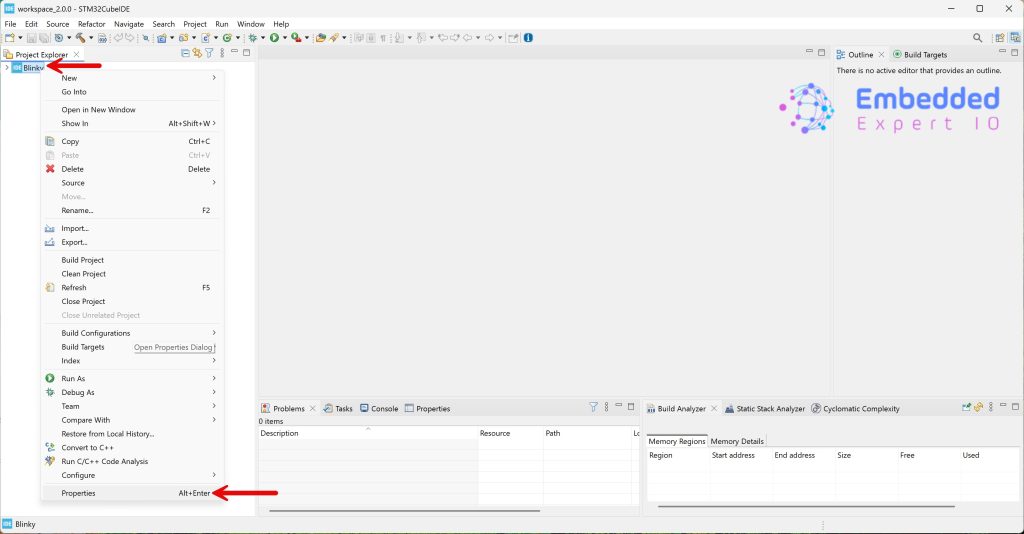

After copying the files, the path of those folder shall be added to the project. To do so, right click on the project name, and select properties:

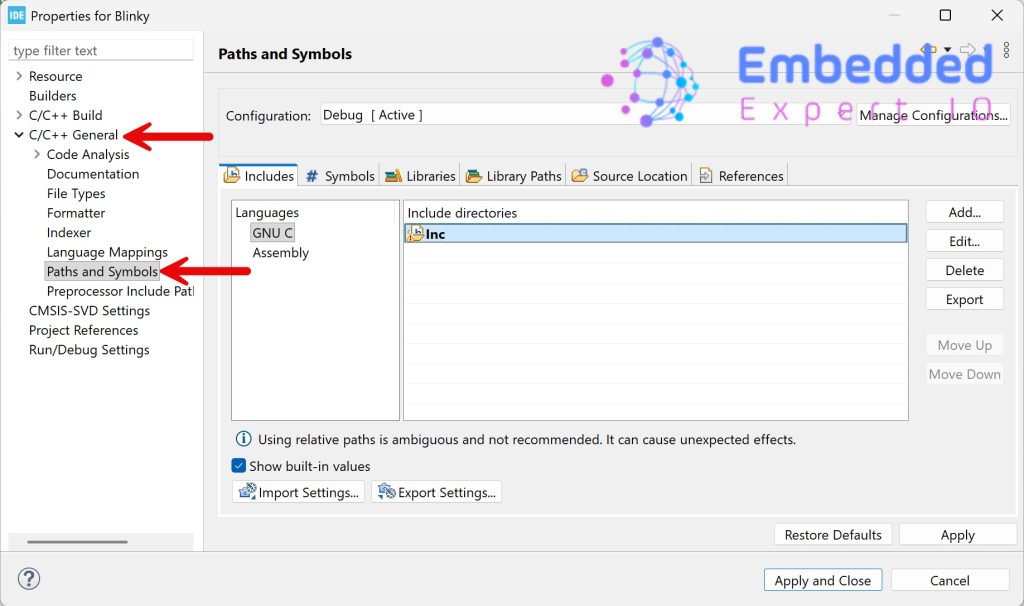

Then, go to C/C++ General and select path and symbols:

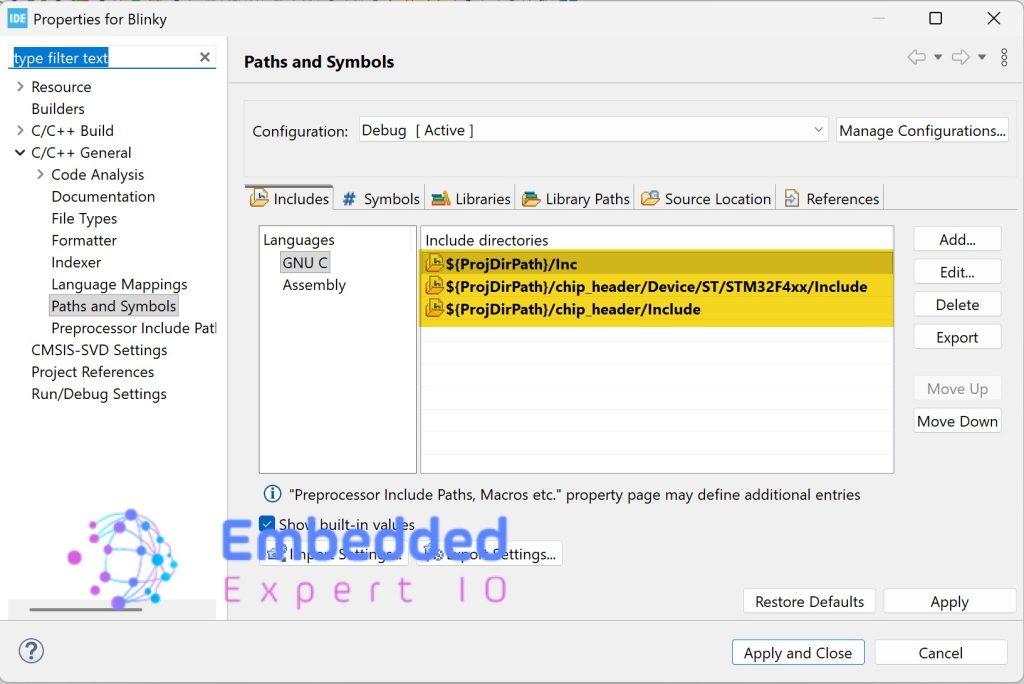

Remove everything within include directories and add as shown in the figure below:

${ProjDirPath}/Inc

${ProjDirPath}/chip_header/Device/ST/STM32F4xx/Include

${ProjDirPath}/chip_header/Include

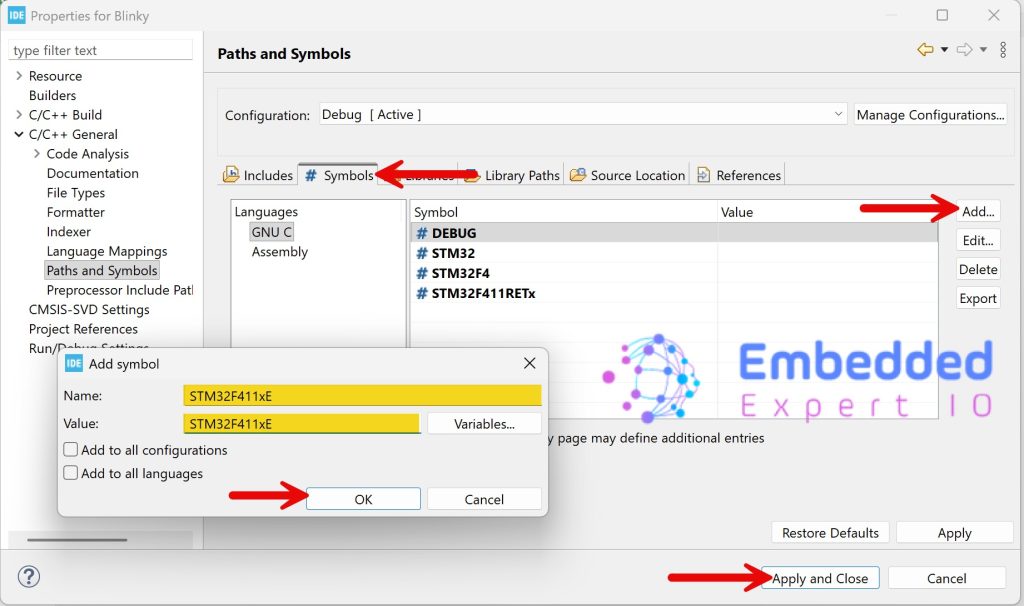

Now, head to next window which is Symbols and add the following:

STM32F411xE

Now, STM32CubeIDE is ready for bare metal programing for STM32F411RE.

Enjoy this and happy coding 😉
