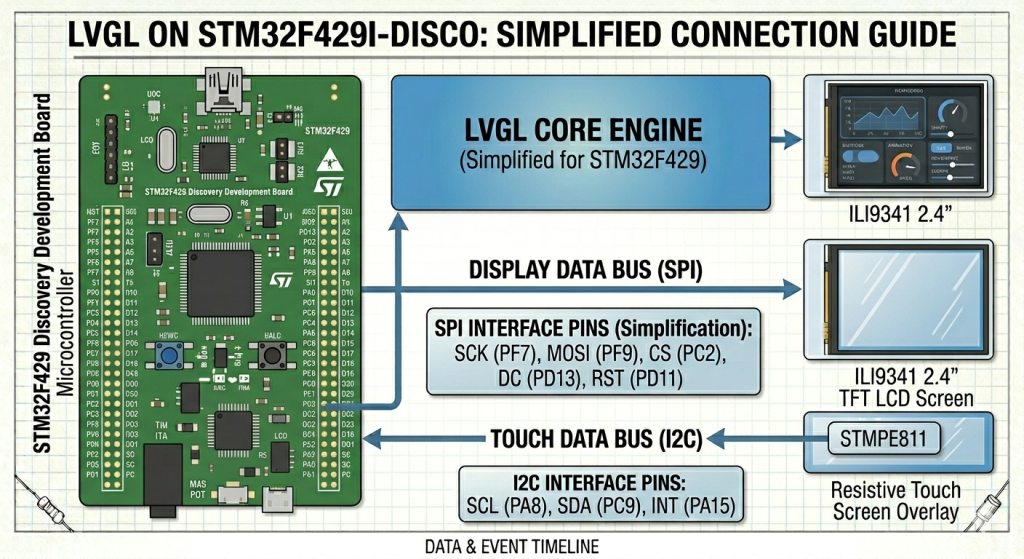

In Part 6, we elevate our project by integrating the Light and Versatile Graphics Library (LVGL), transforming raw hardware drivers into a professional-grade graphical user interface. You will learn how to bridge your touch and display drivers with the library’s HAL and deploy a comprehensive widget demo to showcase the STM32F429’s rendering capabilities.
In this guide, we shall cover the following:
- STM32CubeMX sonfiguration.
- Firmware setup.
- Results.
1. STM32CubeMX Configuration:
Open the project .ioc file in STM32CubeMX.

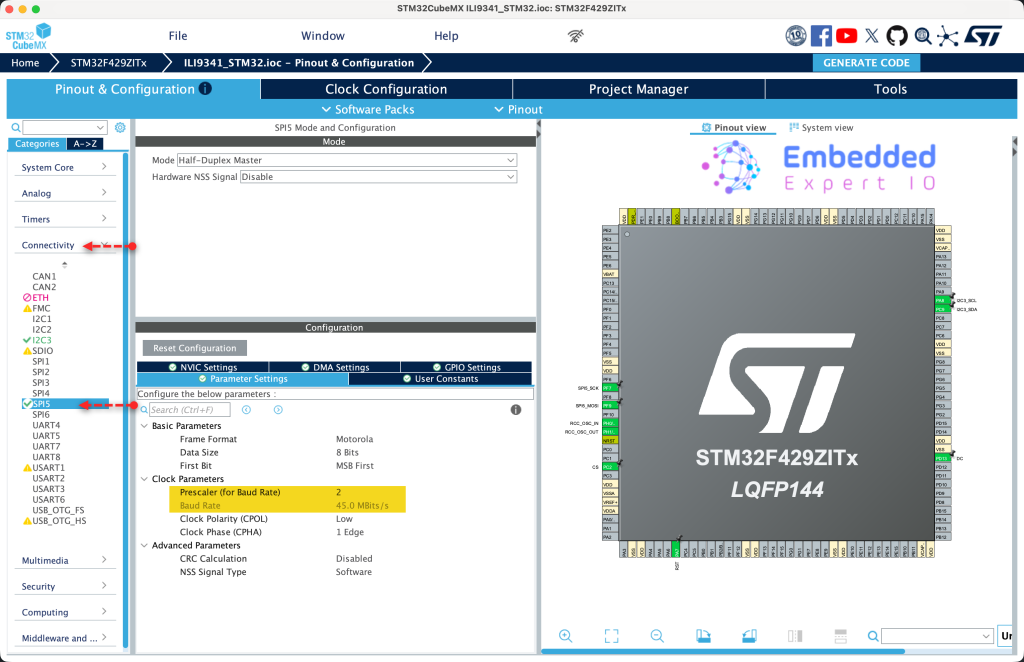

From connectivity, select SPI5 and set the orescaler to 2. This will provide 45Mbps transfer speed as follows:

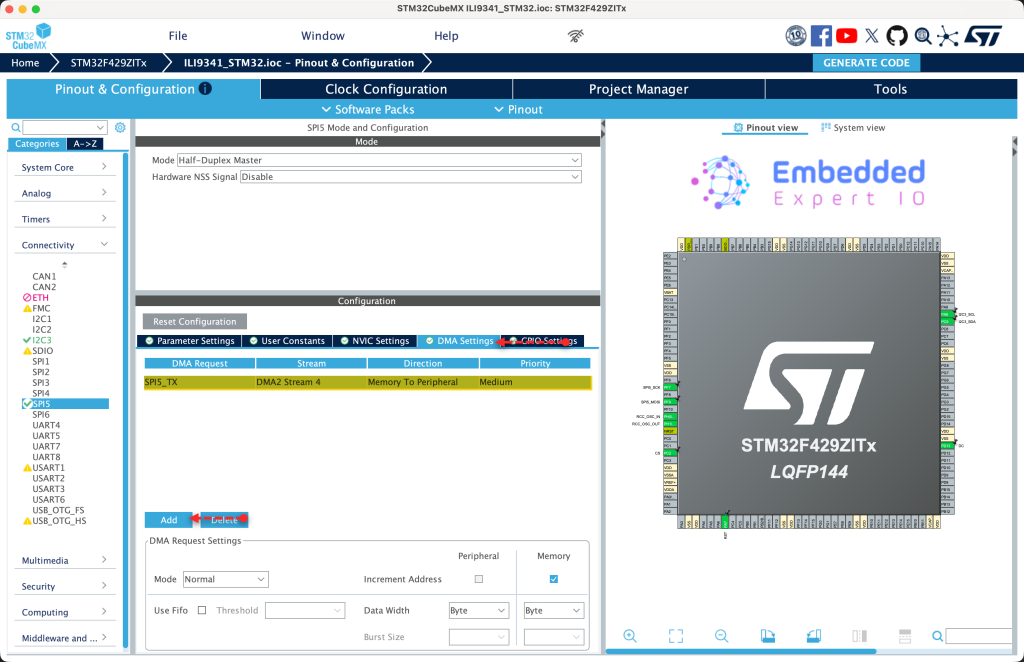

Next, from DMA settings, enable DMA for SPI5_TX as follows:

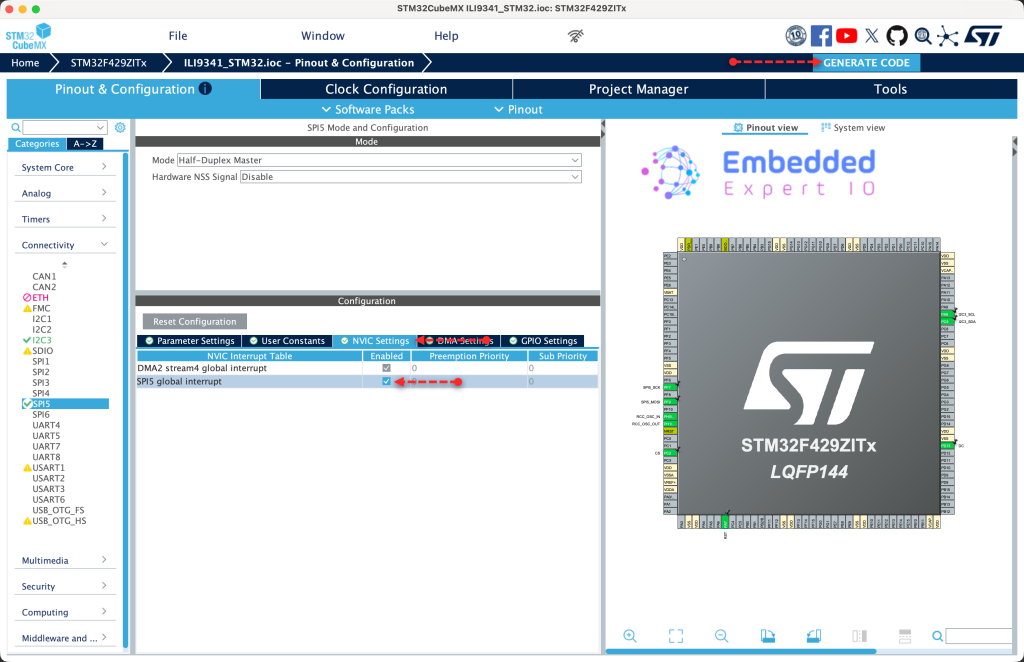

Finally, enable SPI5 global interrupt and generate code as follows:
Thats all for the configuration.
2. Firmware Development:

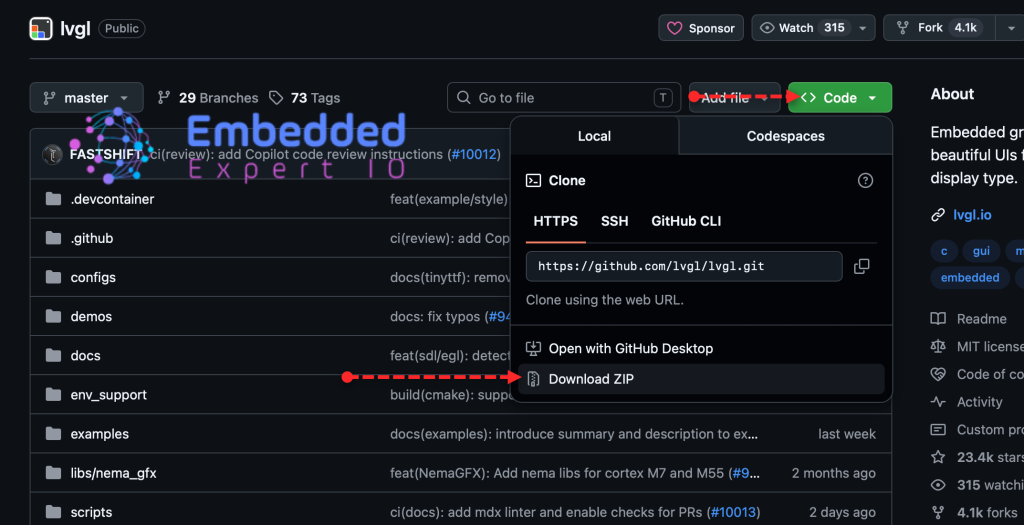

First, head to this github repository and download the latest version as follows:

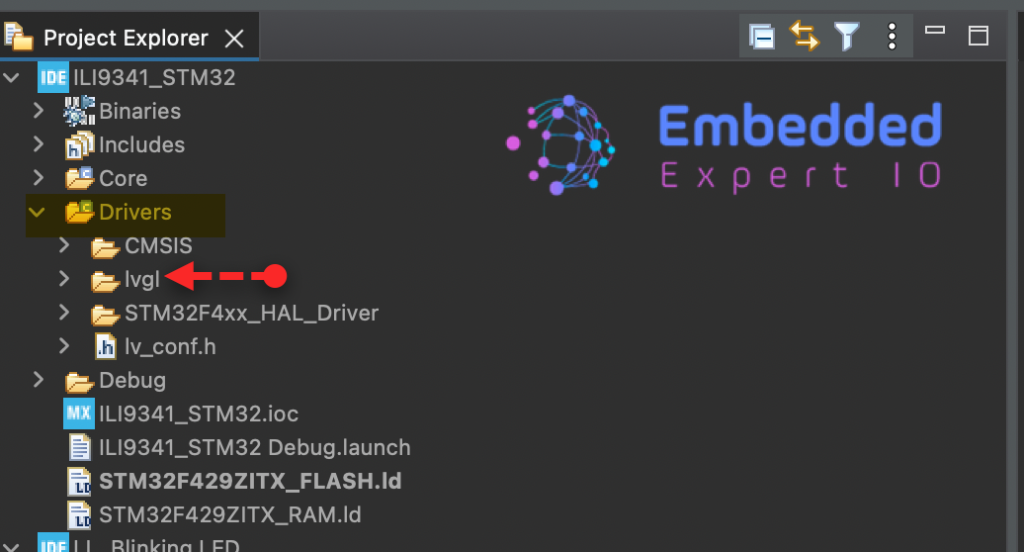

Once downloaded, extract it and rename it simply, lvgl and added to drivers folders as follows:
Next, we shall add LvGL folder to the build process.

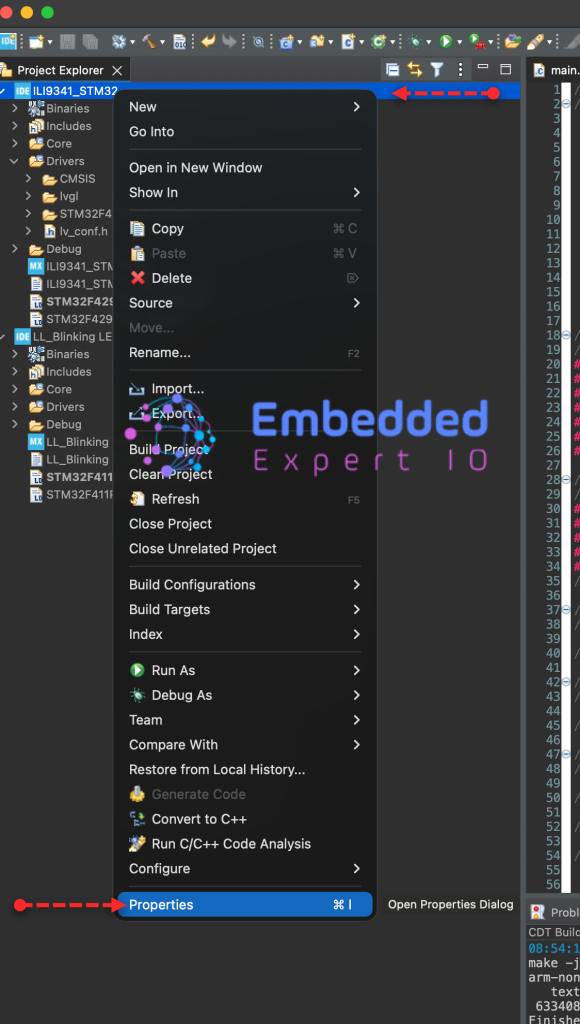

Right click on the project from project explorer and click on properties as follows:

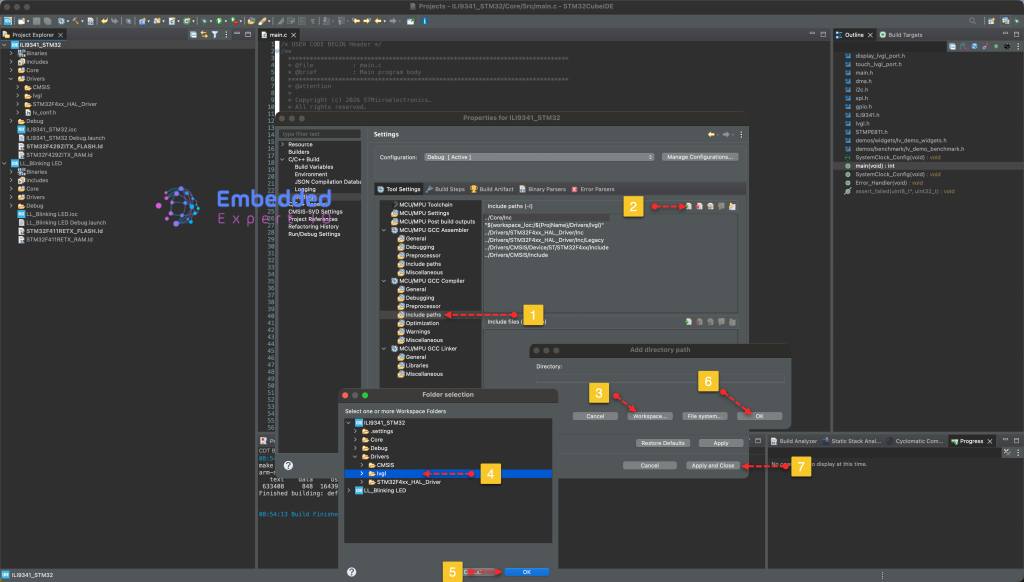

From MCU/MPU GCC compiler, include LvGL path as follows:
Now, we are ready to develop the firmware.

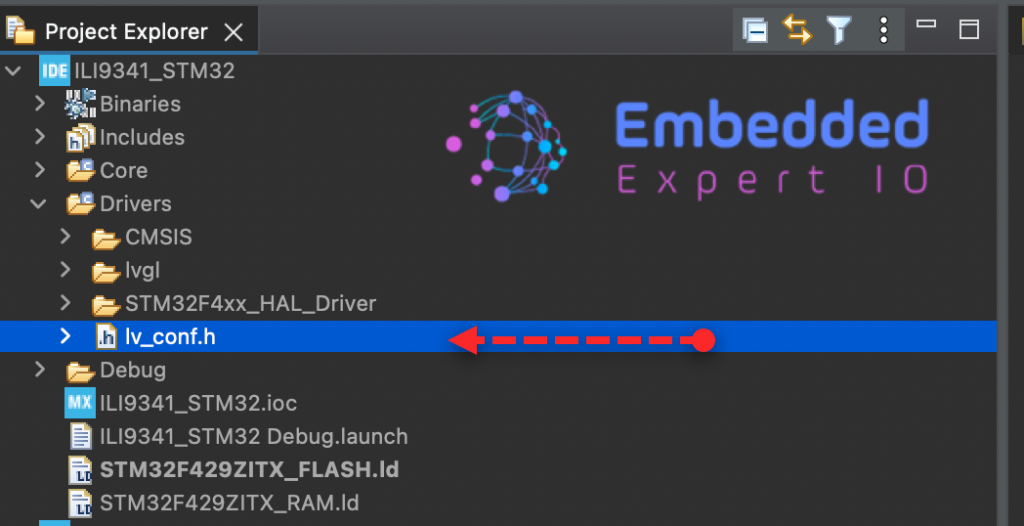

First, in driver folders, create new header file with name of lv_conf.h as follows:
Copy the content of the following header file from this repository.
Once it has been copied, modify the following. First, enable it by setting #if to 1 as follows:
#if 1
By default, the color is set to RGB565, which is the correct one for our display.
#define LV_COLOR_DEPTH 16
Next, enable the demos as follows:
#define LV_BUILD_DEMOS 1
Enable the widget demo as follows:
#define LV_USE_DEMO_WIDGETS 1
Thats all for the lv_conf.h.
Next, open ILI9341.h and add the following function:
void ILI9341_Draw_Bitmap_DMA(uint16_t Xstart, uint16_t Ystart, uint16_t Xend, uint16_t Yend, const uint8_t *Image);
This function shall use DMA to transfer the pixel data rather than polling mode.
In ILI9341.c source file, add the following function:
void ILI9341_Draw_Bitmap_DMA(uint16_t Xstart, uint16_t Ystart, uint16_t Xend, uint16_t Yend, const uint8_t *Image)
{
uint32_t size = (Xend - Xstart + 1) * (Yend - Ystart + 1) * 2;
ILI9341_SetWindow(Xstart,Ystart,Xend,Yend);
WriteCommand(0x2c);
CS_Select();
DC_HIGH();
HAL_SPI_Transmit_DMA(&hspi5, Image, size);
}Once the DMA transfer is completed, HAL_SPI_TxCpltCallback will be called.
First, define this function as weak function. This will allow the user to override the function with his code as follows:
__weak void ILI9341_Transfer_Completed(void);
For HAL_SPI_TxCpltCallback:
void HAL_SPI_TxCpltCallback(SPI_HandleTypeDef *hspi)
{
CS_Deselect();
ILI9341_Transfer_Completed();
}Simple, deselect the display and call ILI9341_Transfer_Completed function.

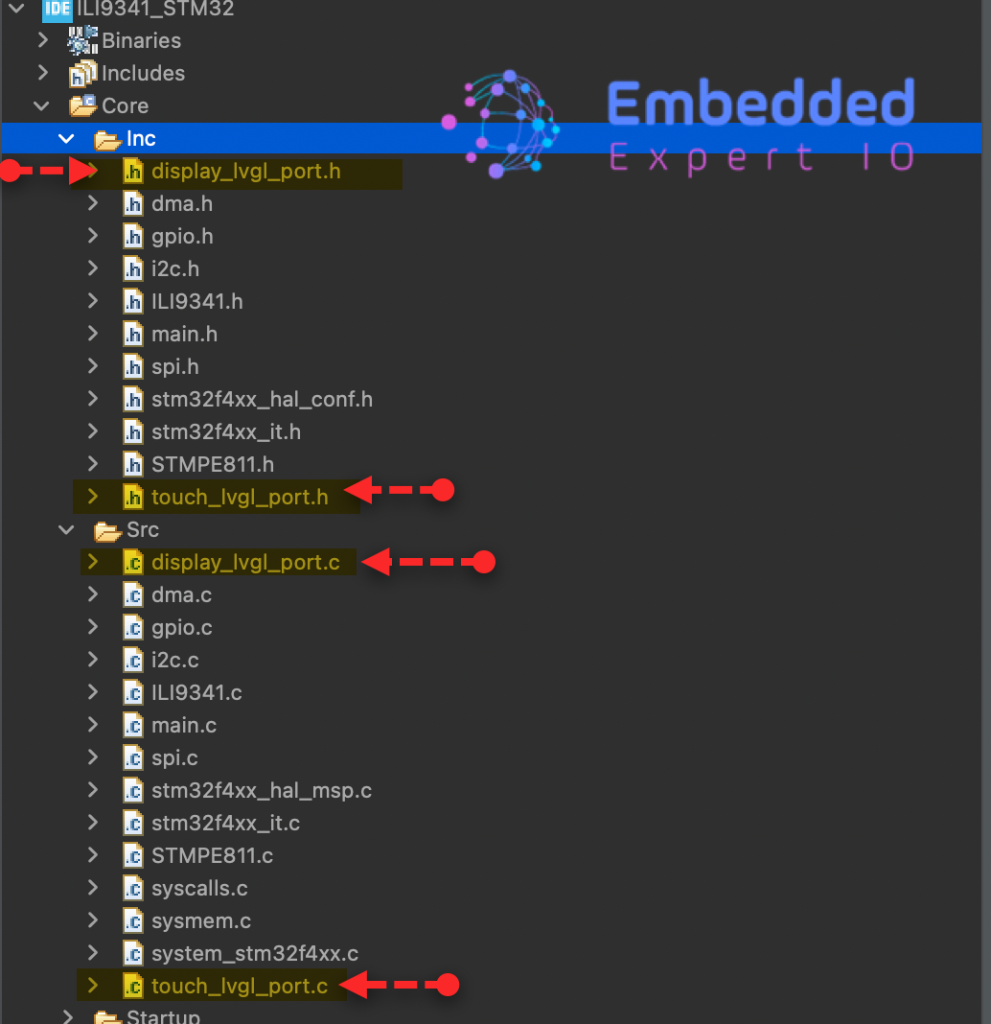

Next, create new source and header files with the following names:
- display_lvgl_port.h
- display_lvgl_port.c
- touch_lvgl_port.h
- touch_lvgl_port.c
For display_lvgl_port.h, copy the content of the header file in this repository.
Hence, the content of the header file as follows:
#if 1
#ifndef LV_PORT_DISP_TEMPL_H
#define LV_PORT_DISP_TEMPL_H
#ifdef __cplusplus
extern "C" {
#endif
/*********************
* INCLUDES
*********************/
#include "lvgl.h"
/*********************
* DEFINES
*********************/
/**********************
* TYPEDEFS
**********************/
/**********************
* GLOBAL PROTOTYPES
**********************/
/* Initialize low level display driver */
void lv_port_disp_init(void);
/* Enable updating the screen (the flushing process) when disp_flush() is called by LVGL
*/
void disp_enable_update(void);
/* Disable updating the screen (the flushing process) when disp_flush() is called by LVGL
*/
void disp_disable_update(void);
/**********************
* MACROS
**********************/
#ifdef __cplusplus
} /*extern "C"*/
#endif
#endif /*LV_PORT_DISP_TEMPL_H*/
#endif /*Disable/Enable content*/Next, for display_lvgl_port.c source file:
#if 1
/*********************
* INCLUDES
*********************/
#include <display_lvgl_port.h>
#include <stdbool.h>
#include "ILI9341.h"
#define MY_DISP_HOR_RES 240
#define MY_DISP_VER_RES 320
static uint8_t buf_2_1[240*32*2]__attribute__((aligned(4)));;
static uint8_t buf_2_2[240*32*2]__attribute__((aligned(4)));;
lv_display_t *disp;
/*********************
* DEFINES
*********************/
/**********************
* TYPEDEFS
**********************/
/**********************
* STATIC PROTOTYPES
**********************/
static void disp_init(void);
static void disp_flush(lv_display_t * disp, const lv_area_t * area, uint8_t * px_map);
/**********************
* STATIC VARIABLES
**********************/
/**********************
* MACROS
**********************/
/**********************
* GLOBAL FUNCTIONS
**********************/
void lv_port_disp_init(void)
{
/*-------------------------
* Initialize your display
* -----------------------*/
disp_init();
/*------------------------------------
* Create a display and set a flush_cb
* -----------------------------------*/
disp = lv_display_create(MY_DISP_HOR_RES, MY_DISP_VER_RES);
lv_display_set_flush_cb(disp, disp_flush);
lv_display_set_buffers(disp, buf_2_1, buf_2_2, sizeof(buf_2_1), LV_DISPLAY_RENDER_MODE_PARTIAL);
// Change the color format to RGB565_SWAPPED
lv_display_set_color_format(disp, LV_COLOR_FORMAT_RGB565_SWAPPED);
}
/**********************
* STATIC FUNCTIONS
**********************/
/*Initialize your display and the required peripherals.*/
static void disp_init(void)
{
ILI9341_Init(ROTATE_0);
}
volatile bool disp_flush_enabled = true;
/* Enable updating the screen (the flushing process) when disp_flush() is called by LVGL
*/
void disp_enable_update(void)
{
disp_flush_enabled = true;
}
/* Disable updating the screen (the flushing process) when disp_flush() is called by LVGL
*/
void disp_disable_update(void)
{
disp_flush_enabled = false;
}
/*Flush the content of the internal buffer the specific area on the display.
*`px_map` contains the rendered image as raw pixel map and it should be copied to `area` on the display.
*You can use DMA or any hardware acceleration to do this operation in the background but
*'lv_display_flush_ready()' has to be called when it's finished.*/
static void disp_flush(lv_display_t * disp_drv, const lv_area_t * area, uint8_t * px_map)
{
if(disp_flush_enabled)
{
// Simply pass the area coordinates directly to your DMA function
ILI9341_Draw_Bitmap_DMA(area->x1, area->y1, area->x2, area->y2, px_map);
}
else
{
// If flushing is disabled, we must still inform LVGL to prevent a deadlock
lv_display_flush_ready(disp_drv);
}
}
void ILI9341_Transfer_Completed(void)
{
lv_display_flush_ready(disp);
}
#else /*Enable this file at the top*/
/*This dummy typedef exists purely to silence -Wpedantic.*/
typedef int keep_pedantic_happy;
#endif
For touch_lvgl_port.h header file:
#if 1
#ifndef LV_PORT_INDEV_TEMPL_H
#define LV_PORT_INDEV_TEMPL_H
#ifdef __cplusplus
extern "C" {
#endif
/*********************
* INCLUDES
*********************/
#include "lvgl.h"
/*********************
* DEFINES
*********************/
/**********************
* TYPEDEFS
**********************/
/**********************
* GLOBAL PROTOTYPES
**********************/
void lv_port_indev_init(void);
/**********************
* MACROS
**********************/
#ifdef __cplusplus
} /*extern "C"*/
#endif
#endif /*LV_PORT_INDEV_TEMPL_H*/
#endif /*Disable/Enable content*/
Next, for touch_lvgl_port.c source file:
#if 1
/*********************
* INCLUDES
*********************/
#include <touch_lvgl_port.h>
#include "STMPE811.h"
/*********************
* DEFINES
*********************/
/**********************
* TYPEDEFS
**********************/
/**********************
* STATIC PROTOTYPES
**********************/
static void touchpad_init(void);
static void touchpad_read(lv_indev_t * indev, lv_indev_data_t * data);
static bool touchpad_is_pressed(void);
static void touchpad_get_xy(int32_t * x, int32_t * y);
/**********************
* STATIC VARIABLES
**********************/
lv_indev_t * indev_touchpad;
/**********************
* MACROS
**********************/
/**********************
* GLOBAL FUNCTIONS
**********************/
void lv_port_indev_init(void)
{
/**
* Here you will find example implementation of input devices supported by LittelvGL:
* - Touchpad
* - Mouse (with cursor support)
* - Keypad (supports GUI usage only with key)
* - Encoder (supports GUI usage only with: left, right, push)
* - Button (external buttons to press points on the screen)
*
* The `..._read()` function are only examples.
* You should shape them according to your hardware
*/
/*------------------
* Touchpad
* -----------------*/
/*Initialize your touchpad if you have*/
touchpad_init();
/*Register a touchpad input device*/
indev_touchpad = lv_indev_create();
lv_indev_set_type(indev_touchpad, LV_INDEV_TYPE_POINTER);
lv_indev_set_read_cb(indev_touchpad, touchpad_read);
}
/**********************
* STATIC FUNCTIONS
**********************/
/*------------------
* Touchpad
* -----------------*/
/*Initialize your touchpad*/
static void touchpad_init(void)
{
STMPE811_Touch_Enable();
}
/*Will be called by the library to read the touchpad*/
static void touchpad_read(lv_indev_t * indev_drv, lv_indev_data_t * data)
{
static int32_t last_x = 0;
static int32_t last_y = 0;
/*Save the pressed coordinates and the state*/
if(touchpad_is_pressed()) {
touchpad_get_xy(&last_x, &last_y);
data->state = LV_INDEV_STATE_PRESSED;
}
else {
data->state = LV_INDEV_STATE_RELEASED;
}
/*Set the last pressed coordinates*/
data->point.x = last_x;
data->point.y = last_y;
}
/*Return true is the touchpad is pressed*/
static bool touchpad_is_pressed(void)
{
if (isTouched()==touched)
{
return true;
}
else
{
return false;
}
}
/*Get the x and y coordinates if the touchpad is pressed*/
static void touchpad_get_xy(int32_t * x, int32_t * y)
{
uint16_t X,Y;
getTouchValue(&X, &Y);
*x=X;
*y=320-Y;
}
#endifThats all for the porting process.
Next, open main.c file.
We start by including the following header files:
#include "lvgl.h" #include <display_lvgl_port.h> #include <touch_lvgl_port.h> #include "demos/widgets/lv_demo_widgets.h"
Next, in main function.
First, initialize lvgl:
lv_init();
attach HAL_GetTick to lv_tick_set_cb as follows:
lv_tick_set_cb(HAL_GetTick);
Intialize the display and touch as follows:
lv_port_disp_init(); lv_port_indev_init();
In while 1 loop:
Call lv_timer_handler each 5ms as follows
lv_timer_handler(); HAL_Delay(5);
Save, build the project and run it as follows:
You may download the code from this github repository.
3. Results:
Happy coding 😉
